Load Capacity: 40~560t, customized
Span: 8~32m, customized
Lifting Height: 20~75m, customized
Class: A1, A2, A3

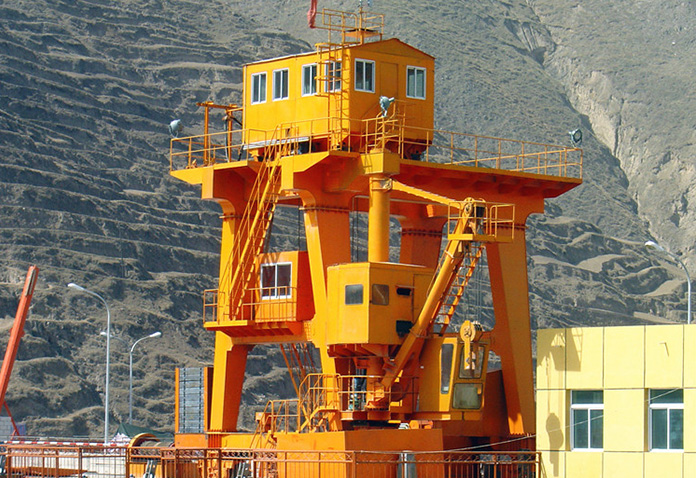

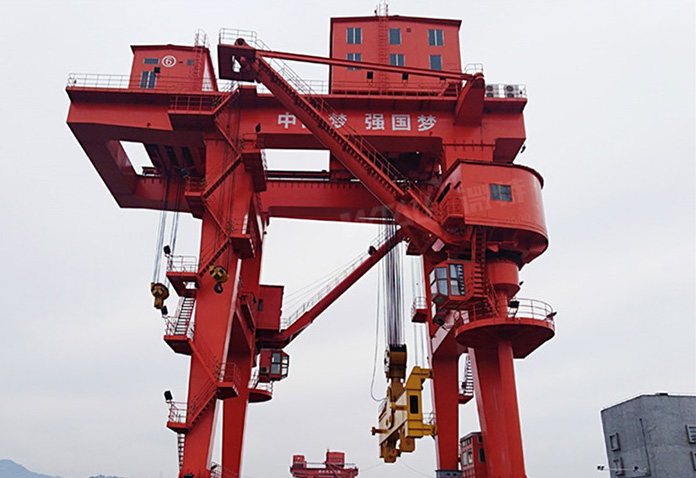

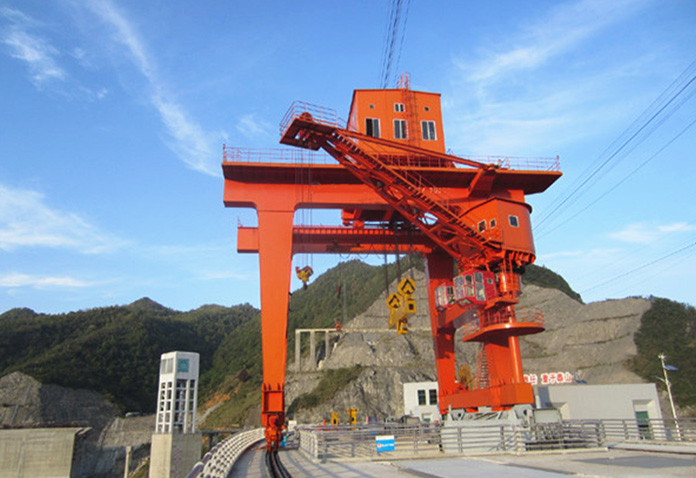

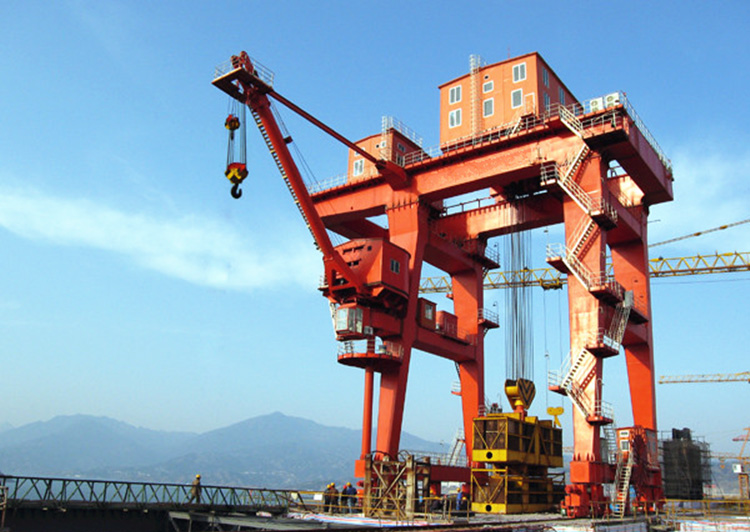

Mainly used for lifting and opening and closing gates
At large hydropower stations and water conservancy projects.
Support customization
Made of high-quality steel, reliable quality
Low power consumption and operating cost
| Load Capacity (ton) | Span /Rail Gauge(m) | Max. Lifting height(m) | Class |
| 50 | 8.5~25 | 3~75 | A1, A2, A3 |
| 80 | 8.5~25 | 3~75 | A1, A2, A3 |
| 100 | 8.5~25 | 3~75 | A1, A2, A3 |
| 150 | 8.5~25 | 3~75 | A1, A2, A3 |
| 200 | 8.5~25 | 3~75 | A1, A2, A3 |
| 275 | 8.5~25 | 3~75 | A1, A2, A3 |
| 300 | 8.5~25 | 3~75 | A1, A2, A3 |
| 350 | 8.5~25 | 3~75 | A1, A2, A3 |
| 400 | 8.5~25 | 3~75 | A1, A2, A3 |
| 450 | 8.5~25 | 3~75 | A1, A2, A3 |
| 500 | 8.5~25 | 3~75 | A1, A2, A3 |
| 560 | 8.5~25 | 3~75 | A1, A2, A3 |
| Customizable | Customizable | Customizable | Customizable |
