Rail Mounted Container Gantry Crane

Main Features:

Capacity: 10t/20t/30t/35t/40t or customized
Span: 15~35m, customzied
Lifting Height: 3~25 m, customzied
For ISO Standard 20ft/40ft/45ft Containers
Suitable for material similar with containers

Application:

Containers yard, factory, loading site

Special container loading, Logistics Park

Download Inquire Now

Advantage

Easy operation with high Safety system

Easy maintenance, Low operating cost

Customized products to meet clients' needs

Data Sheet

Load Capacity (ton)	Span /Rail Gauge (m)	Max. Lifting height (m)	Duty Class
10	15~35	3~25	A5 or A3
16	15~35	3~25	A5 or A3
20	15~35	3~25	A5 or A3
32	15~35	3~25	A5 or A3
36	15~35	3~25	A5 or A3
40	15~35	3~25	A5 or A3
50	15~35	3~25	A5 or A3
Customizable	Customizable	Customizable	Customizable

Product Description

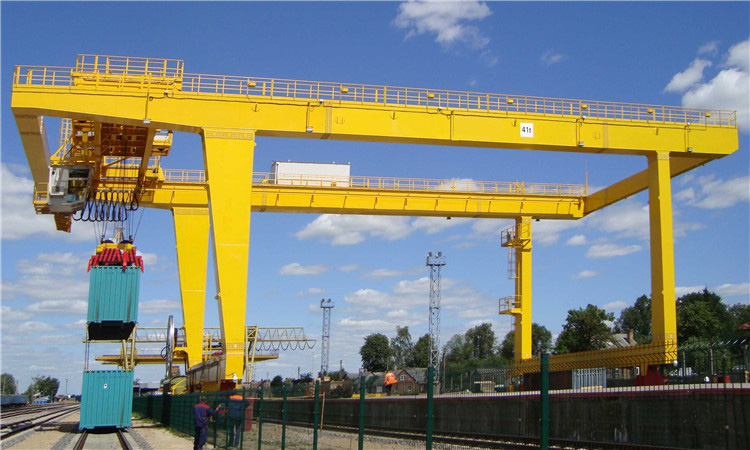

Rail-Mounted-Container-Gantry-Crane-10

Features

Rail mounted crane used to offload, stack and load 20ft, 40ft, 45ft ISO standard containers
Double welding box girder, ISO standard Camber
Whole length CNC cutting for complete web plate, high deflection accuracy
High quality autometic welding and NDT inspection
Epoxy zinc rich high quality paiting
Vertical gear motor driving, more safety and smaller space
High proection class IP44, F class, 40% ED

Safety Protection

Gearmotor locker rope to protect drop
Rain cover for outside hoist, driving units, electrical cubicle
Wind detector device has been installed for all outdoor gantry cranes
Rail rocker and rail sweeper
Warning indicator: flashing lights and warning sound
Wireless infra-detector for anti-collusion
End carriage equipped with anti-friction bearings,cellular buffers,derailment protectors
