Rubber Tyre Double Beam Gantry Crane

Main Features:

Lifting Capacity: 10 ~ 500t, customized
Span Length: 8 ~ 40m, customzied
Lifting Height: 5 ~ 32m, customzied
Color: Yellow, red or customzied

Application:

Warehouse, Workshop, Stockyard, Manufacturing Plant, Construction work, Energy, Mining, etc.

Download Inquire Now

Advantage

Reasonable Structural Design

Lower maintenance costs

Longer service cycle

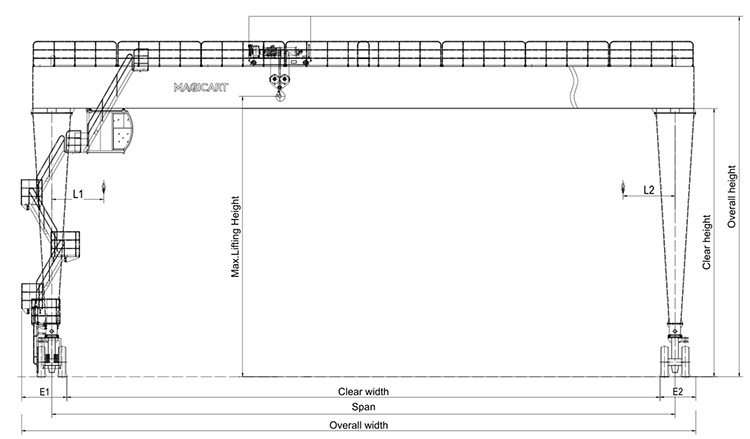

Product Drawing

Rubber-Tyre-Double-Beam-Gantry-Crane-10

Data Sheet

Model	Capacity	Max Lifting Height	Span
GRT 10	10T	3m ~ 9m	3m ~ 35m
GRT 20	20T	3m ~ 9m	3m ~ 35m
GRT 30	30T	3m ~ 12m	3m ~ 35m
GRT 50	50T	3m ~ 12m	3m ~ 35m
GRT 70	70T	3m ~ 12m	3m ~ 35m
GRT 100	70T	5m ~ 15m	5m ~ 35m
GRT 120	120T	5m ~ 15m	5m ~ 35m
GRT 150	150T	5m ~ 15m	5m ~ 35m
GRT 200	200T	3m ~ 15m	5m ~ 35m
GRT 250	250T	3m ~ 20m	5m ~ 35m
GRT 300	300T	5m ~ 20m	5m ~ 35m
GRT 400	400T	5m ~ 20m	5m ~ 35m
	Customized design	Customized design	Customized design

Product Description

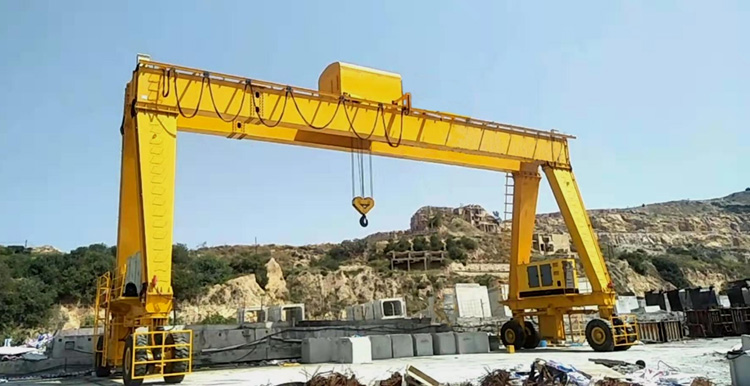

Rubber-Tyre-Double-Beam-Gantry-Crane-11

Advantages

High utilization
Large operating ranege
Wide adaptability and strong versatility
Widely used in port yards, construction site, outdoor and indoor

Safety Devices

Overload Limiter, Limit Switch (Lifting and Traveling), Short-circuit protection.
Interlock protection device, Under-voltage protection, Buffer, Zero protection.
Rail tongs, anchor device and motor overload protection.
Rail clear plate and emergency stop system.
Protective cover and current overload protection system.
Bus Bar prevent plate and security chain protection.
Anti-collision device and ground protection.
