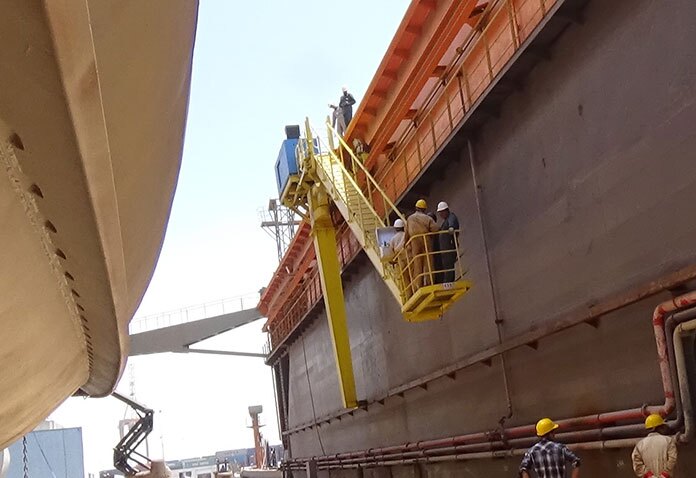

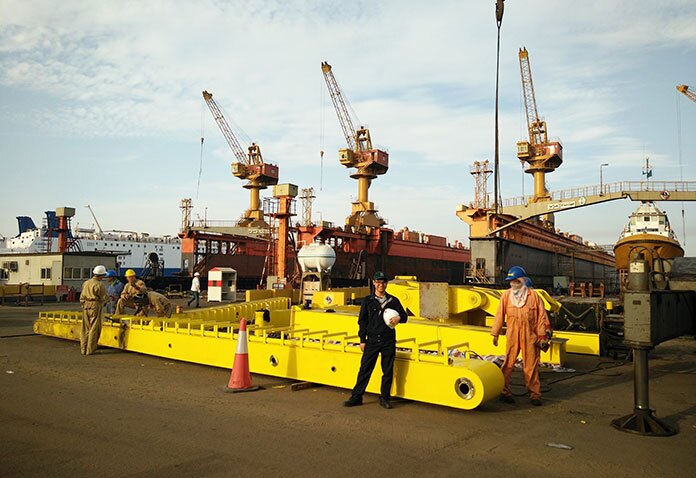

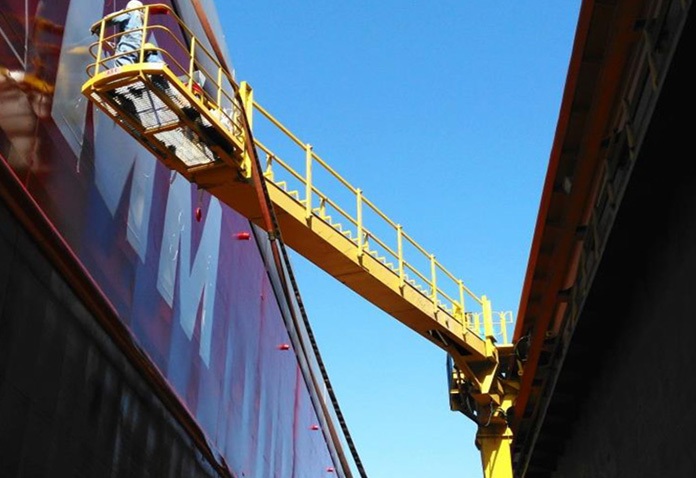

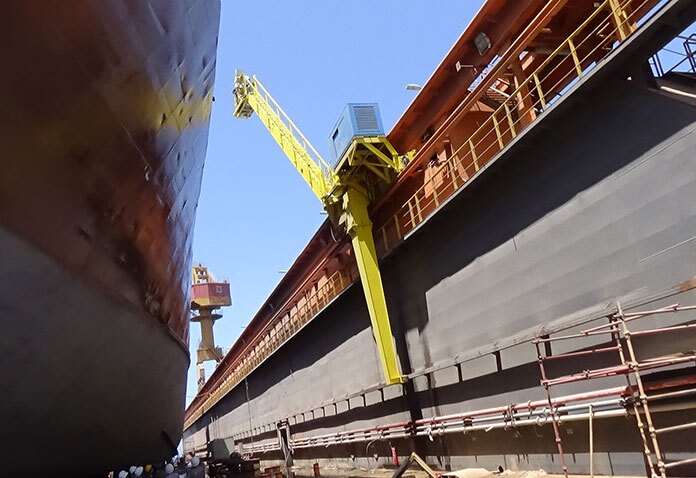

Shipyard Dock Arm

Main Features:

Capacity: 500kg/600kg,Slew at 0~180°

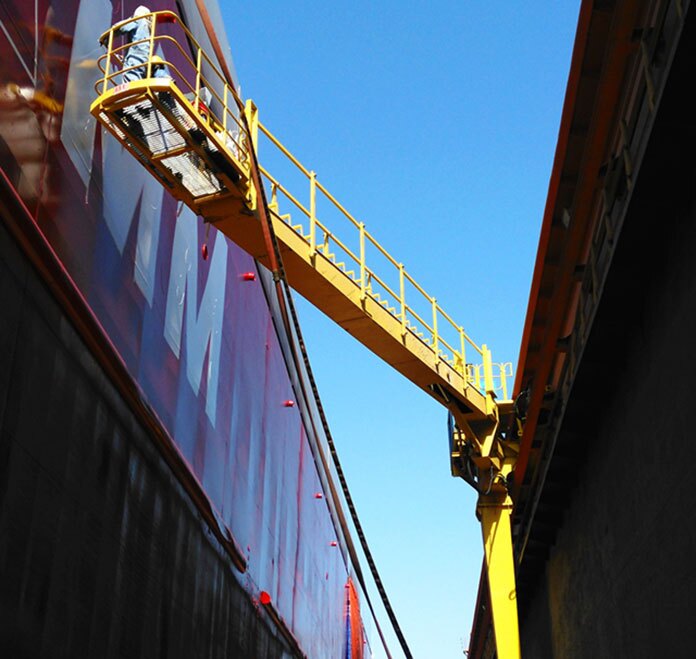

Working platform is rotatable, adjusted
Raised up to 75°, lowered to dock bottom
Powered by diesel engine or via cable reel

Application:

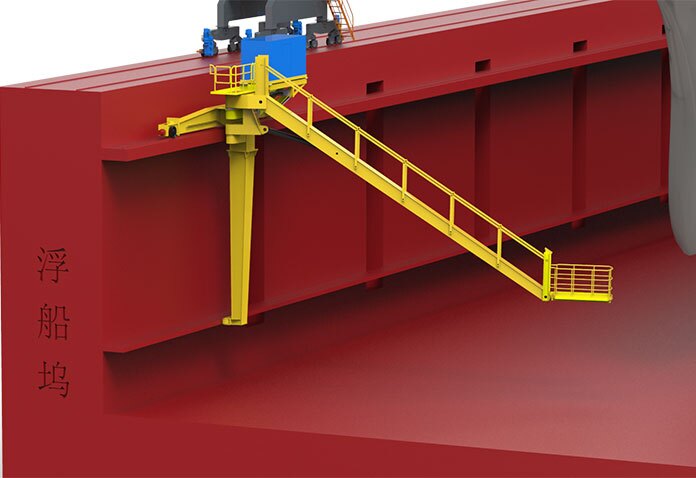

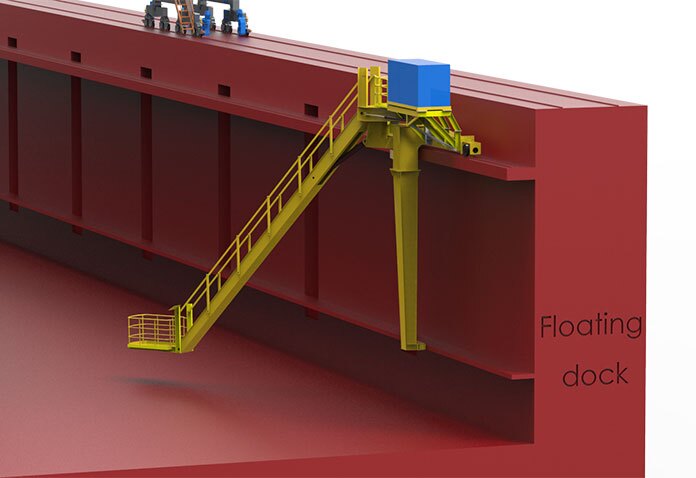

Installed on floating dock or dry dock

Run along the track on the dock wall

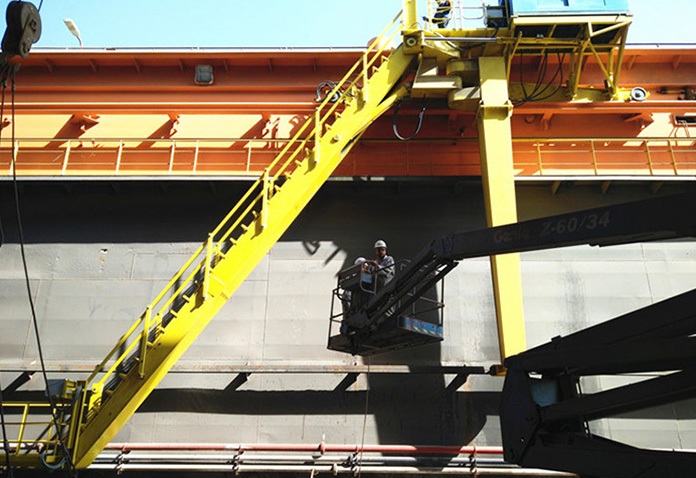

For ship repair,rust removal, painting etc

Download Inquire Now

Advantage

Not occupy space on dock,small size

Work can be done even water in dock

Efficiency and cost better than manlift

Data Sheet

Load Capacity (kg)	Max. Working Radius (m)	Power Supply
500	8	Diesel engine or cable
500	12
500	16
500	20	Diesel engine or cable
500	24
500	28
400	32	Diesel engine or cable
400	36
400	40
400	45	Diesel engine or cable
400	50
400	55
Customizable	Customizable	According to customer requirements

Product Description

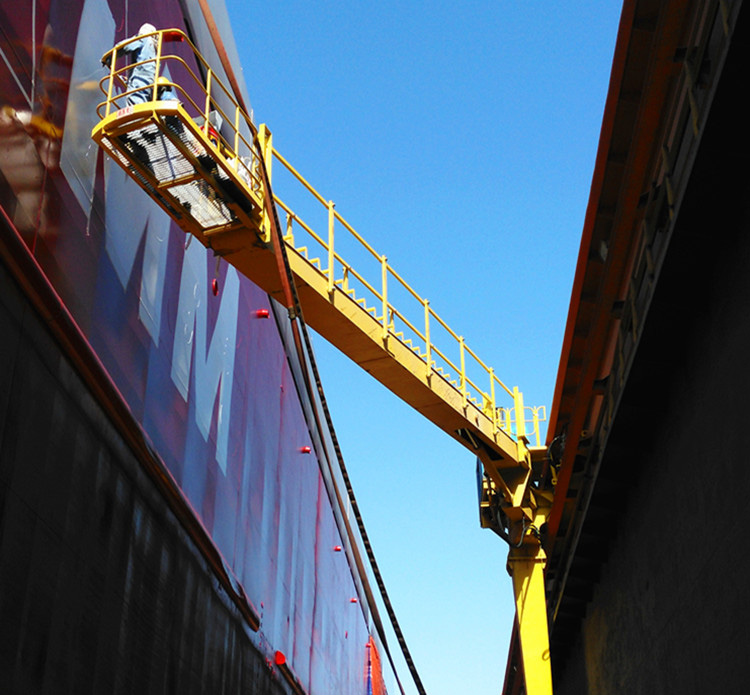

Shipyard-Jib-Crane-10

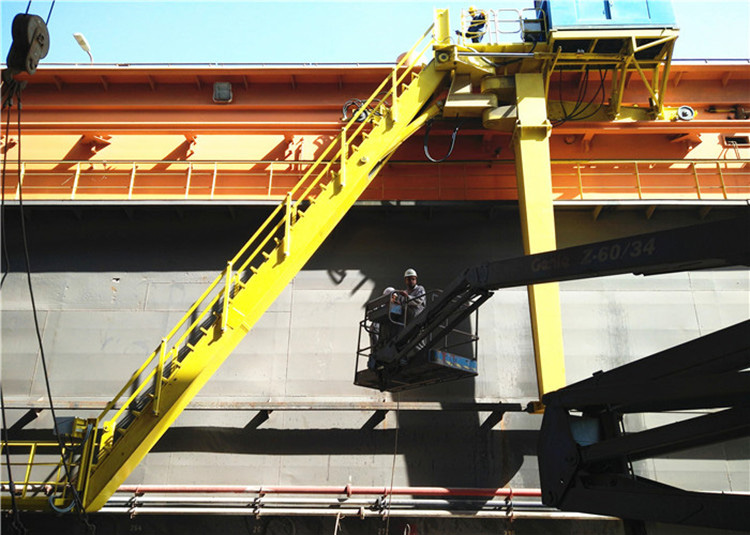

Shipyard-Jib-Crane-11

Features

Dock Arm is one manlift for ship repair equipped with floating dock, which owns full hydraulic drive system.
It can drive 12m arm slew by 120° and going up and down flexibly.
It can travel along the dock rail operated by worker in the worker platform with control station.
Its excellent performance, high efficient productivity in ship repair business.

MAGICART, a trustworthy and professlonal partner wil be very helpful for...

Call +86 373 5853707 +86 17337369287to enjoy a good experience here!
